Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers

Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers
Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers

Image Grand :  Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers

Détails sur le produit:
Lieu d'origine: CHINE
Nom de marque: GNEE
Certification: SGS
Conditions de paiement et expédition:
Prix: negotiable
Détails d'emballage: Emballage digne de la mer, c'est-à-dire un plateau en bois ou en acier avec bande d'acier, e
Délai de livraison: 5-9 jours ouvrables
Conditions de paiement: Négociable
Capacité d'approvisionnement: 100 tonnes / semaine
Contact

Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers

description de
Mettre en évidence:

hot-dip galvanized steel grating

,

compound steel bar grating platforms

,

steel grating walkways trench covers

Hot-DIP Galvanized Compound Steel Bar Grating
Product Description

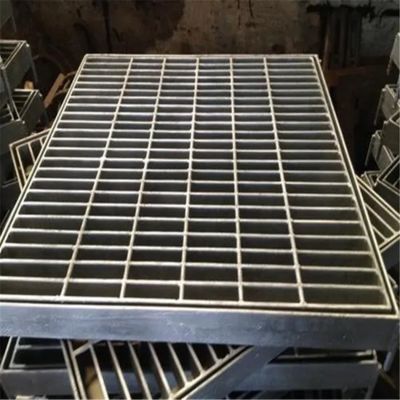

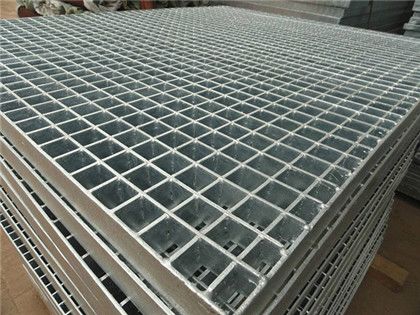

Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings.

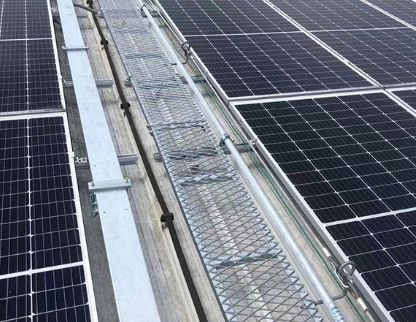

With various styles and sizes for choice, steel gratings are widely used in everyday life, such as stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, heavy-duty constructions, and so on.

Ordering Information

When ordering, please specify:

  • Material type
  • Specification code of steel bar grating
  • Cross bar type and size
  • Thickness of checkered steel plates, or all parameters of steel mesh panels such as expanded steel mesh, perforated steel mesh and steel wire mesh panels
  • Overall size
  • Surface treatment
  • Order qty
  • Other technical details (if any)
  • All commercial details
Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers 0
Technical Specifications
Type of Bearing Bars Size of Bearing Bars (mm, Depth x Thickness) Size of Cross Bars (mm) Pitch of Rectangular Holes (mm)
Rectangular Flat Bars 25 × 2 8 x 8 30x100, 40x100, 60x100
25 × 3 8 x 8 30x100, 40x100, 60x100
25.4 × 4.76 8 x 8 30x100, 40x100, 60x100
30 × 5 8 x 8 30x100, 40x100, 60x100
32 × 3 8 x 8 30x100, 40x100, 60x100
32 × 5 8 x 8 30x100, 40x100, 60x100
38 × 3 8 x 8 30x100, 40x100, 60x100
38 × 5 8 x 8 30x100, 40x100, 60x100
40 × 3 8 x 8 30x100, 40x100, 60x100
40 × 4 8 x 8 30x100, 40x100, 60x100
40 × 5 8 x 8 30x100, 40x100, 60x100
40 × 12 8 x 8 30x100, 40x100, 60x100
45 × 3 8 x 8 30x100, 40x100, 60x100
45 × 5 8 x 8 30x100, 40x100, 60x100
50 × 3 8 x 8 30x100, 40x100, 60x100
50 × 4.5 8 x 8 30x100, 40x100, 60x100
55 × 3 8 x 8 30x100, 40x100, 60x100
60 × 3 8 x 8 30x100, 40x100, 60x100
60 × 12 8 x 8 30x100, 40x100, 60x100
65 x 5 8 x 8 30x100, 40x100, 60x100
I-Shaped Steel Bars 26.8 × 6.25 8 x 8 30x100, 40x100, 60x100
25.4 × 6.35 8 x 8 30x100, 40x100, 60x100
65 × 6.35 8 x 8 30x100, 40x100, 60x100
50.8 × 6.35 8 x 8 30x100, 40x100, 60x100
T-Shaped Steel Bars 32 x 60 8 x 8 30x100, 40x100, 60x100
28 x 52 8 x 8 30x100, 40x100, 60x100
Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers 1
Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers 2
Hot-DIP Galvanized Compound Steel Bar Grating Serving as Platforms, Walkways, Trench Covers and Manhole Covers 3
