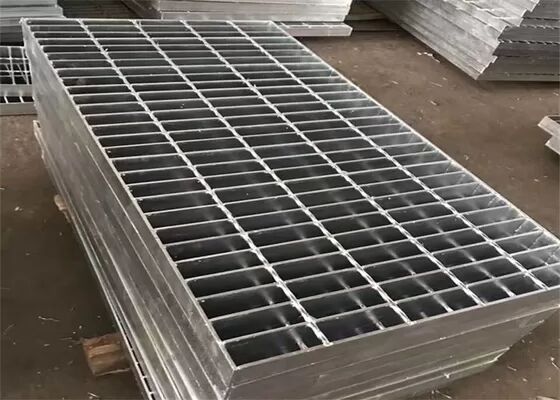

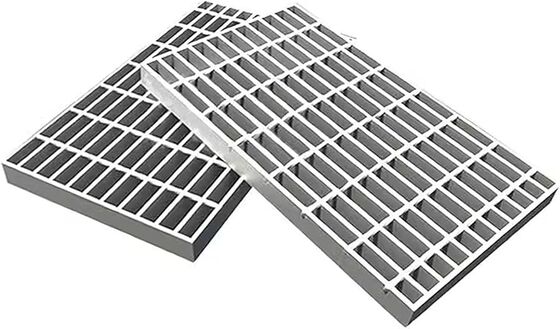

Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications

Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications
Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications
Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications

Image Grand :  Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications

Détails sur le produit:
Nom de marque: Gnee
Certification: ISO9001
Conditions de paiement et expédition:
Quantité de commande min: 2pcs
Détails d'emballage: Fixer avec une ceinture métallique Emballage avec palette, emballage extérieur avec film plastique i
Délai de livraison: Transporté en 20 jours après paiement
Capacité d'approvisionnement: 300000 mètres carrés / mètres carrés par mois
Contact

Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications

description de
Mettre en évidence:

3mm-7mm Thickness Steel Grating

,

30mm Pitch Metal Grating

,

40mm Pitch Bar Grating

Hot-DIP Galvanized Steel Grating Stainless Welded Metal Steel Grating Heavy Duty Metal Grid Grating Panels
Welded Grating
The most commonly used and economical design suitable for most industrial applications. Manufactured by welding the bearing bar and cross bar intersection, typically with automated forge welding equipment or professional manual welding. Available in carbon steel or stainless steel.
Dovetail Pressure Locked
Insert the cross bar into the pre-punched bearing bar and hydraulically deform it to lock it in place. The cross bar here is usually a straight plate shaped like a bearing bar.
Swaged Pressure Locked
Assembled by inserting pre-punched bearing and cross bars into an "egg-crate" configuration and deforming the cross bars under intense hydraulic pressure. Available in all materials and ideal for architectural and ornamental applications.
Welded Swaged Pressure Locked
An upgraded version of the swaged pressure locked. Each intersection is manually welded once to make it stronger and able to withstand more loads.
Surface Treatment
We provide four finishes for anti-corrosion treatment of carbon steel bar grating:
  • Black / Bare Steel: No finish, life is very short, but the price is the cheapest.
  • Painted Coat: The anti-rust effect is general and can be any color.
  • Electro-galvanized: A small amount of zinc coating, easy to cause slight corrosion in humid environment.
  • Hot-dip galvanized: The most commonly used method to provide the best anti-rust effect, strictly in accordance with ASTM A123 or GB/T 13912-2002.
Technical Specifications
Load Bar Specifications (mm) Height: 20mm/25mm/30mm/40mm/50mm
Thickness: 3mm-7mm
Load Bar Pitch (center to center) 30mm/40mm/60mm or as customized
Cross Bar Pitch (center to center) 40, 50, 60, 76, 80, 90, 100 or as customized
Material Mild Steel
Surface Treatment Black or Hot DIP Galvanizing
Steel grating standards Australia: AS1657-1985
UK: BS4592-1987
USA: ANSI/NAAMM (MBG531-88)
Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications 0 Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications 1 Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications 2
