Hot Dipped Galvanized Stainless Steel Grating with High Load-Bearing and Corrosion Resistant Pressure Welded Grating Plate

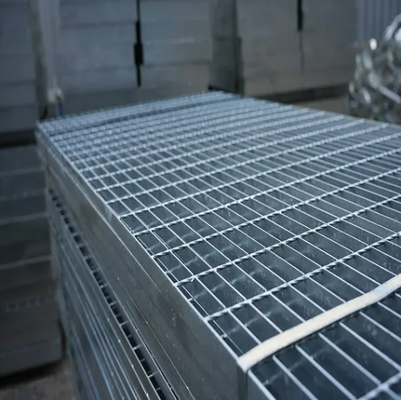

Image Grand : Hot Dipped Galvanized Stainless Steel Grating with High Load-Bearing and Corrosion Resistant Pressure Welded Grating Plate

Détails sur le produit:

Lieu d'origine:	Hénan
Nom de marque:	GNEE
Certification:	SGS

Conditions de paiement et expédition:

Quantité de commande min:	Négociation
Prix:	negotiable
Détails d'emballage:	Forfait standard digne de la mer
Capacité d'approvisionnement:	300 000 mètres carrés/mètres carrés par mois

Contact

Hot Dipped Galvanized Stainless Steel Grating with High Load-Bearing and Corrosion Resistant Pressure Welded Grating Plate

description de

Platform Stainless Steel Grating Pressure Welded Grating Plate

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to steel bar grating made of mild carbon steel through hot dipped galvanized surface treatment.

Mild carbon steel provides an economical, high strength for use in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.

Product Description

Structure: Welding with flat steel and cross/round bars with certain distances
Features: High strength, light structure, high bearing capacity
Surface: The hot dipped zinc coating gives the product excellent anti-corrosion properties

Steel Grating Specifications

Load Bearing Flat Bar Size	Thickness≥3mm, depth ≥19mm 19×3, 19×5, 20×3, 20×5, 25×3, 25×4, 25×4.5, 25×4.7, 25×5…40×6, 40×8, 40×10…90×6…
Pitch of Load Bearing Flat Bars (mm)	12.5, 15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80…
Pitch of Cross Bars (mm)	38.1, 50, 50.8, 70, 75, 80, 99, 100, 101.6, 102…

International Standards

Country	Steel Grating Standard	Steel Material Standard	Hot Galvanizing Standard
China	YB/T4001-1998	GB 700-88	GB/T13912-2002
USA	ANSI/NAAMM(MBG531-88)	ASTM (A36)	ASTM(A123)
England	BS4592-1987	BS4360 (43A)	BS729
Australia	AS1657-1992	AS3679	AS1650

Detailed Specifications

No.	Item	Description
1	Bearing Bar	25×3, 25×4, 25×4.5, 25×5, 30×3, 30×4, 30×4.5, 30×5, 32×5, 40×5, 50×5, 65×5, 75×6, 75×10-100×10mm etc I bar: 25×5×3, 30×5×3, 32×5×3, 40×5×3 etc US standard: 1"×3/16", 1 1/4"×3/16", 1 1/2"×3/16", 1"×1/4", 1 1/4"×1/4", 1 1/2"×1/4", 1"×1/8", 1 1/4"×1/8", 1 1/2"×1/8", etc
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated / teeth, I bar, serrated I bar

Steel Grating Types

1. Plain Type: One of the most widely used gratings, available for flooring, sidewalk, drainage pit cover, stair tread, etc

2. Serrated Type: Better non-skid property & safety compared with plain grating

3. I-Shape Type: Lighter, more economical and practical comparing with plain grating

Applications

Frequently Asked Questions

What is the difference between welded and pressed steel grating?

Welded grating has bearing and cross bars welded; pressed grating uses pressure-locked joints.

Is maintenance required for steel grating?

Minimal maintenance is needed; periodic cleaning and inspection are recommended.

Can steel grating resist chemicals?

Stainless steel or coated grating offers resistance to many chemicals.

Is steel grating recyclable?

Yes, steel grating is 100% recyclable and environmentally friendly.

How is steel grating priced?

Pricing depends on material, panel size, thickness, and finish.

Can steel grating be used in corrosive environments?

Yes, galvanized or stainless steel grating is ideal for corrosive conditions.

Are there standards for steel grating?

Yes, such as ASTM A36/A1011 for carbon steel and ASTM A123 for galvanizing.
