Stainless Steel Galvanized Drainage Gutter with Serrated Type Bar Grating for Industrial Use

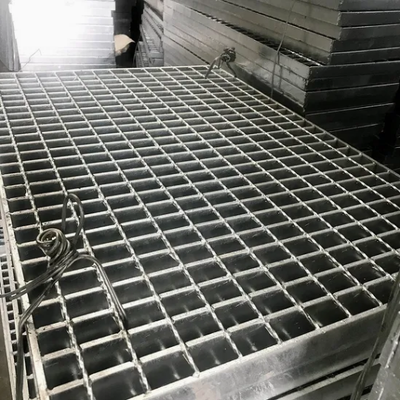

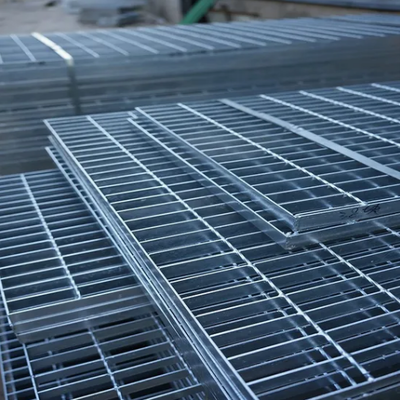

Image Grand : Stainless Steel Galvanized Drainage Gutter with Serrated Type Bar Grating for Industrial Use

Détails sur le produit:

Lieu d'origine:	Hénan
Nom de marque:	GNEE
Certification:	SGS

Conditions de paiement et expédition:

Quantité de commande min:	Négociation
Prix:	negotiable
Détails d'emballage:	Forfait standard digne de la mer
Capacité d'approvisionnement:	300 000 mètres carrés/mètres carrés par mois

Contact

Stainless Steel Galvanized Drainage Gutter with Serrated Type Bar Grating for Industrial Use

description de

Drainage Gutter with Stainless Steel Grating Cover Galvanized Steel Grating

What Is Steel Grating?

Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Made from high-quality carbon or stainless steel, our steel grating features a lightweight yet durable design that ensures excellent load-bearing capacity and long-lasting performance.

Steel Grating Types

Plain Type: One of the most widely used gratings, available for flooring, sidewalk, drainage pit cover, stair tread, etc.
Serrated Type: Better non-skid property and safety compared with plain grating.
I Bar Type: Lighter, more economical, and practical compared with plain grating.

Steel Grating Specifications

Load Bearing Flat Bar Size	Thickness ≥ 3mm, depth ≥ 19mm 19×3, 19×5, 20×3, 20×5, 25×3, 25×4, 25×4.5, 25×4.7, 25×5...40×6, 40×8, 40×10...90×6...
Pitch of Load Bearing Flat Bars (mm)	12.5, 15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80...
Pitch of Cross Bars (mm)	38.1, 50, 50.8, 70, 75, 80, 99, 100, 101.6, 102...

Steel Grating Standards

Country	Steel Grating Standard	Steel Material Standard	Hot Galvanizing Standard
China	YB/T4001-1998	GB 700-88	GB/T13912-2002
USA	ANSI/NAAMM (MBG531-88)	ASTM (A36)	ASTM (A123)
England	BS4592-1987	BS4360 (43A)	BS729
Australia	AS1657-1992	AS3679	AS1650

Detailed Technical Information

No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm etc. I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US Standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8", etc.
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm, etc. US Standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc.
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc.
5	Surface Treatment	Black, self-color, hot dip galvanized, painted, spray coating
6	Grating Style	Plain/Smooth, Serrated/Teeth, I bar, serrated I bar

Surface Treatment

Frequently Asked Questions

Are there standards for steel grating?

Yes, such as ASTM A36/A1011 for carbon steel and ASTM A123 for galvanizing.

Can steel grating handle impact loads?

Yes, steel grating is strong and durable, suitable for heavy industrial use.

What is serrated steel grating?

Serrated grating has a textured surface for better traction and anti-slip performance.

Is steel grating suitable for pedestrian traffic?

Yes, with proper design and spacing, it is safe for walkways and stairs.

Can steel grating be used in high-temperature areas?

Yes, steel grating can withstand high temperatures, making it suitable for industrial plants.
